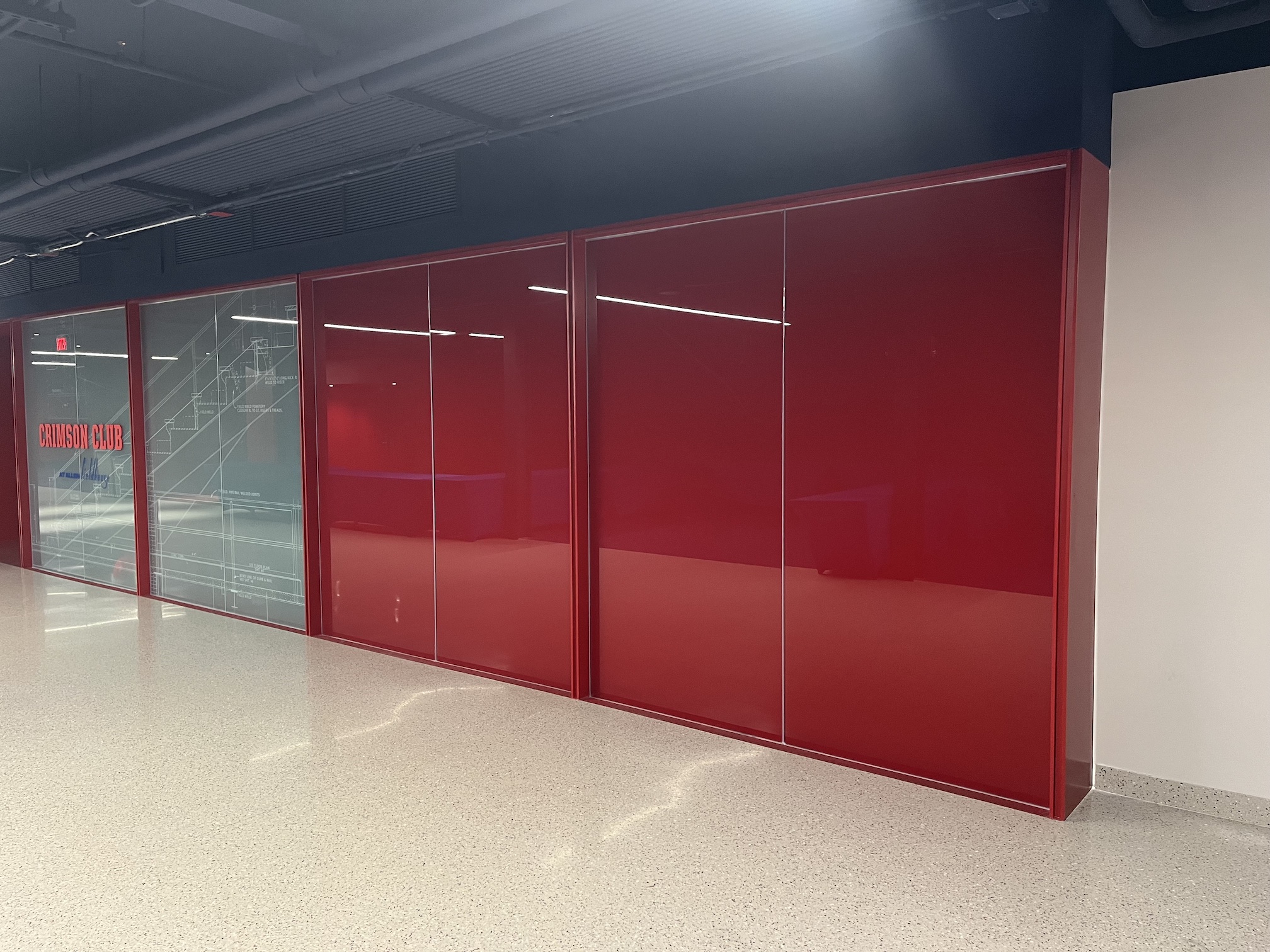

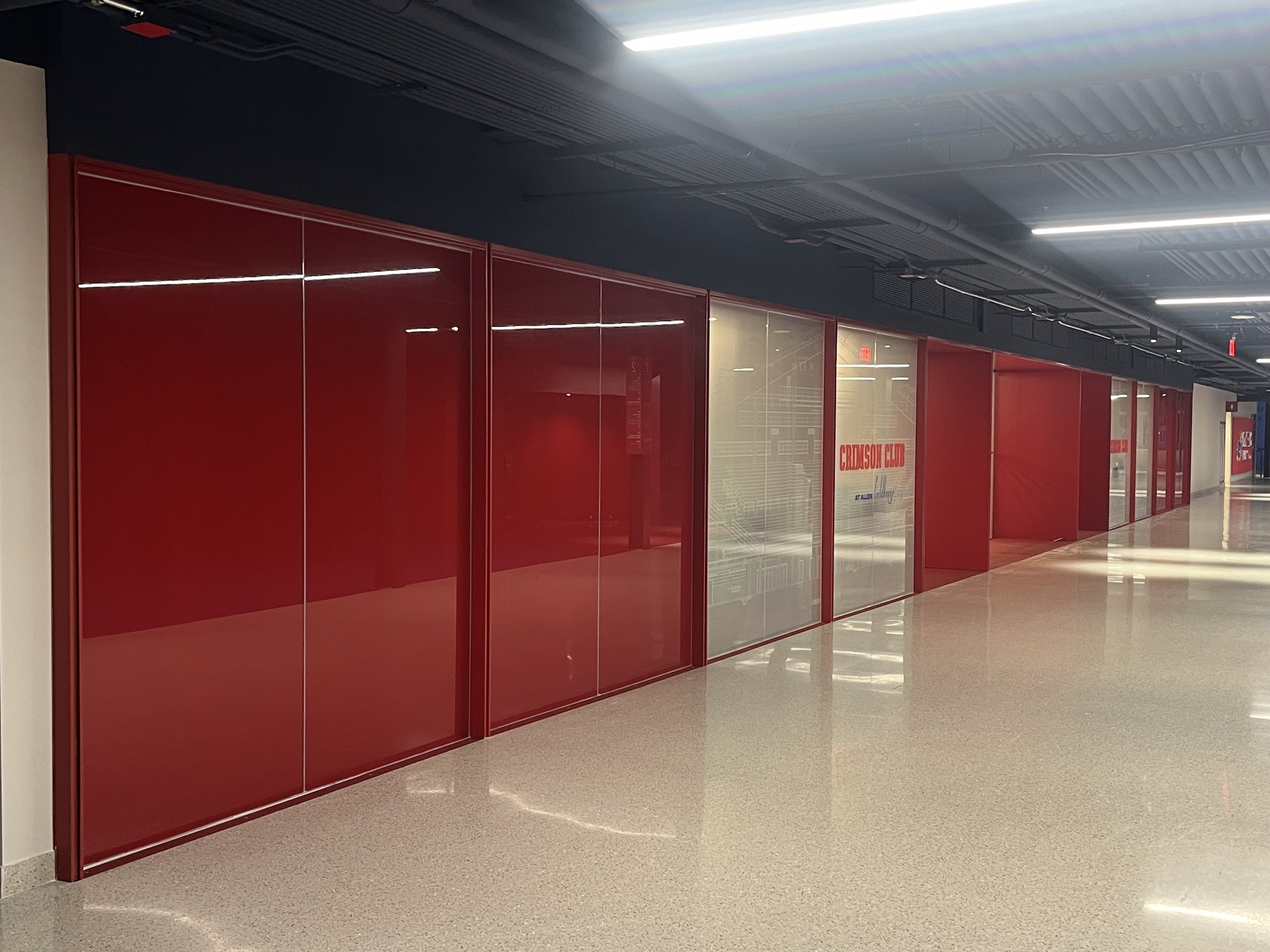

Creating a connected experience between the concourse and the concession stand, The Crimson Club celebrates KU’s basketball legacy.

In response to the design team’s efforts, SSM worked with solid aluminum plate and woven wire mesh to create the various feature elements and column covers.

The picture frame openings are fabricated from. 1/2″ aluminum plate attached to custom hardware with counter sunk, torx fasteners.

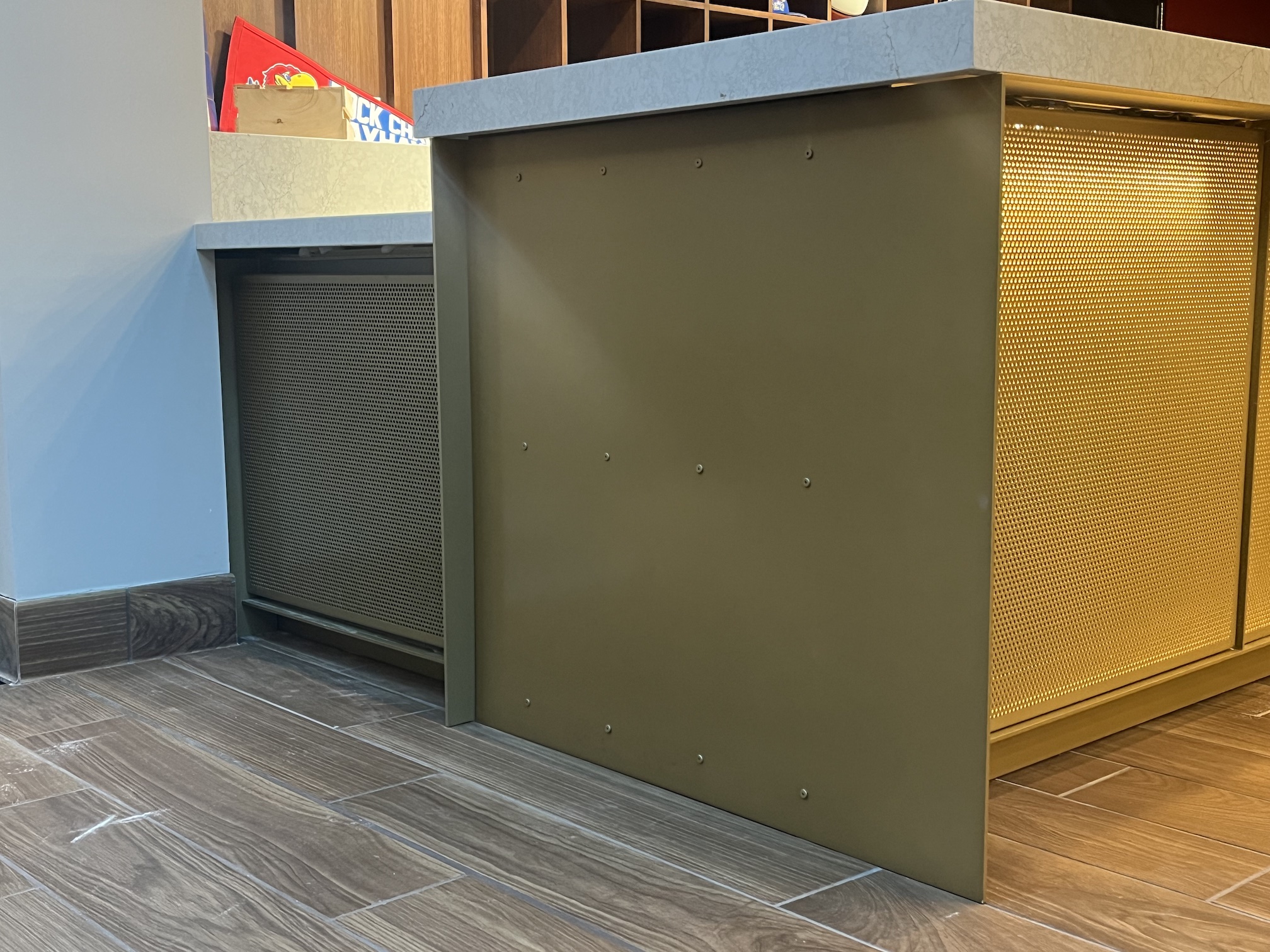

The bar shelving units are fabricated from 1/4″ plate, with tabs that connect to the backer panel.  Tabs are welded to the backer panel from behind for a clean appearance and the completed assembly was painted.

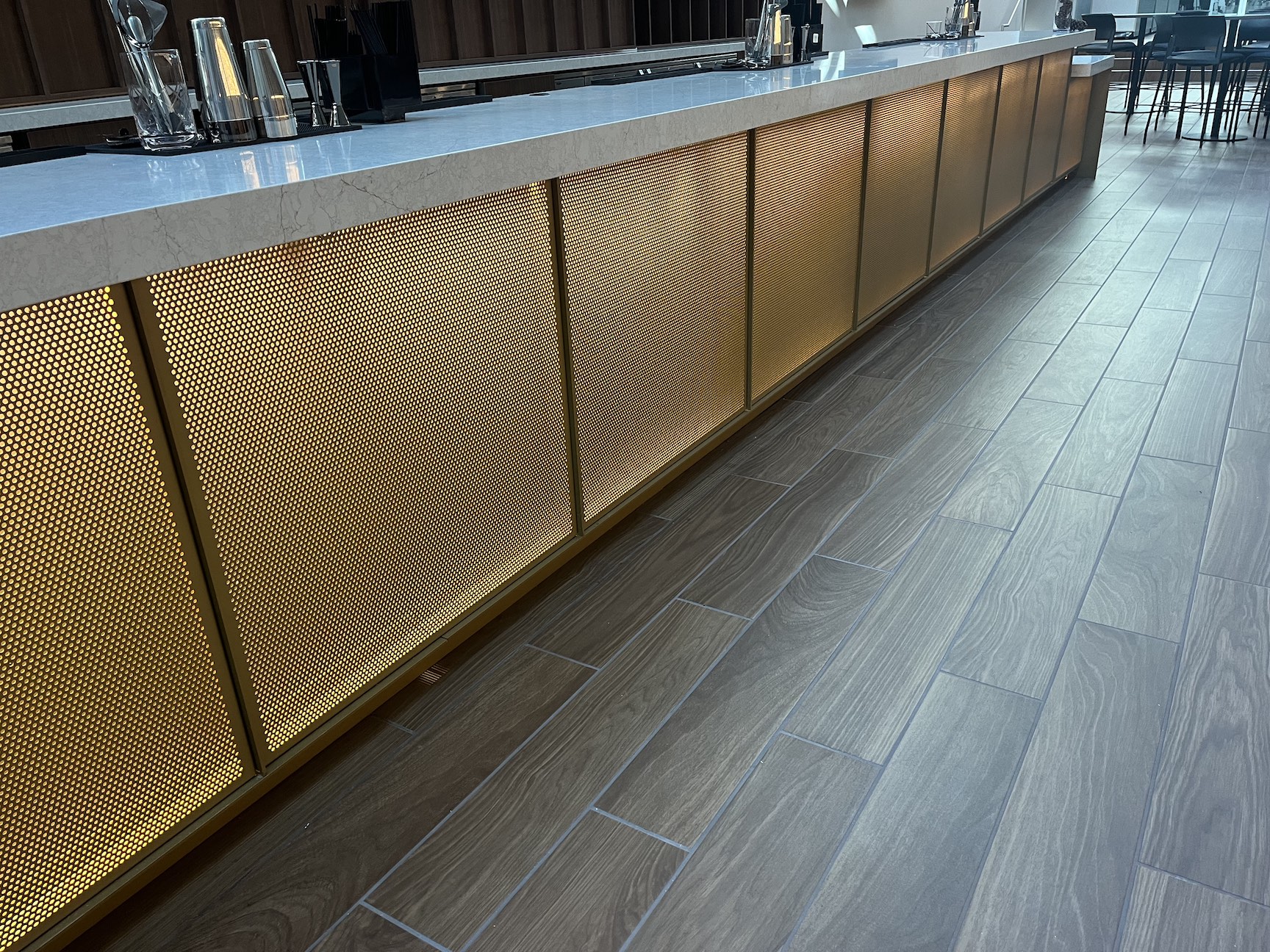

Bar elements are picture framed with a “knife edge” 1/8″ thick frame that utilizes our gravity lock connection system that captures a custom perforated 1/4″ aluminum plate.  All components painted in the signature colors shown.
